Multithreaded: Summation with Minimal Synchronization

Until now, I’ve used two strategies to summate a std::vector. First, I did the whole math in one thread (Single Threaded: Summation of a vector); second multiple threads shared the same variable for the result (Multithreaded: Summation of a vector). In particular, the second strategy was extremely naive. In this post, I will apply my knowledge of both posts. My goal is that the thread will perform their summation as independently from each other as possible and therefore reduce the synchronization overhead.



To let the threads work independently and therefore minimize the synchronization, I have a few ideas in my mind. Local variables, thread-local data but also tasks should work. Now I’m curious.

My strategy

My strategy keeps the same. As in my last post, I use my desktop PC with four cores and GCC and my laptop with two cores and cl.exe. I provide the results without and with maximum optimization. For the details, look here: Thread-safe initialization of a singleton.

Local variables

Since each thread has a local summation variable, it can do its job without synchronization. It’s only necessary to sum up the local summation variables. Adding the local results is a critical section that must be protected. This can be done in various ways. A quick remark before. Since only four addition takes place, it doesn’t matter so much from a performance perspective which synchronization I will use. But instead of my remark, I will use a std::lock_guard and an atomic with sequential consistency and relaxed semantics.



Rainer D 6 P2 500x500Modernes C++ Mentoring

Be part of my mentoring programs:

  • "Fundamentals for C++ Professionals" (open)
  • "Design Patterns and Architectural Patterns with C++" (open)
  • "C++20: Get the Details" (open)
  • "Concurrency with Modern C++" (starts March 2024)
  • Do you want to stay informed: Subscribe.



    std::lock_guard



     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    // localVariable.cpp

    #include <mutex>
    #include <chrono>
    #include <iostream>
    #include <random>
    #include <thread>
    #include <utility>
    #include <vector>

    constexpr long long size= 100000000;

    constexpr long long firBound=  25000000;
    constexpr long long secBound=  50000000;
    constexpr long long thiBound=  75000000;
    constexpr long long fouBound= 100000000;

    std::mutex myMutex;

    void sumUp(unsigned long long& sum, const std::vector<int>& val, unsigned long long beg, unsigned long long end){
        unsigned long long tmpSum{};
        for (auto i= beg; i < end; ++i){
            tmpSum += val[i];
        }
        std::lock_guard<std::mutex> lockGuard(myMutex);
        sum+= tmpSum;
    }

    int main(){

      std::cout << std::endl;

      std::vector<int> randValues;
      randValues.reserve(size);

      std::mt19937 engine;
      std::uniform_int_distribution<> uniformDist(1,10);
      for ( long long i=0 ; i< size ; ++i) randValues.push_back(uniformDist(engine));

      unsigned long long sum{};
      auto start = std::chrono::system_clock::now();

      std::thread t1(sumUp,std::ref(sum),std::ref(randValues),0,firBound);
      std::thread t2(sumUp,std::ref(sum),std::ref(randValues),firBound,secBound);
      std::thread t3(sumUp,std::ref(sum),std::ref(randValues),secBound,thiBound);
      std::thread t4(sumUp,std::ref(sum),std::ref(randValues),thiBound,fouBound);

      t1.join();
      t2.join();
      t3.join();
      t4.join();

      std::chrono::duration<double> dur= std::chrono::system_clock::now() - start;
      std::cout << "Time for addition " << dur.count() << " seconds" << std::endl;
      std::cout << "Result: " << sum << std::endl;

      std::cout << std::endl;

    }




    Lines 25 and 26 are critical lines. Here the local summation results tmpSum will be added to the global sum. What is the spot at which the examples with the local variables will vary?

    Without optimization

    localVariablelocalVariablewin

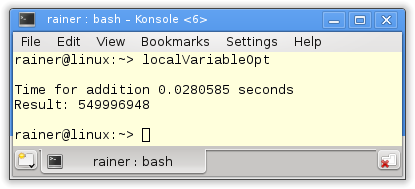

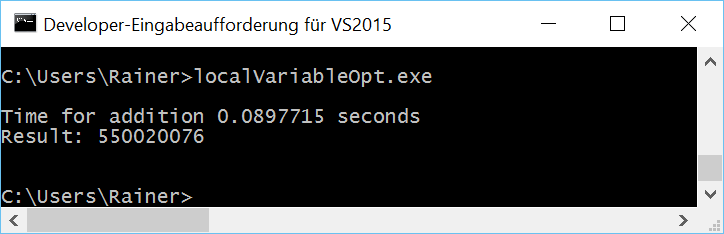

    Maximum optimization

    localVariableOptlocalVariableOptwin

    Atomic operations with sequential consistency

    My first optimization is it to replace the by a std::lock_guard protected global summation sum variable with an atomic.

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    // localVariableAtomic.cpp

    #include <atomic>
    #include <chrono>
    #include <iostream>
    #include <random>
    #include <thread>
    #include <utility>
    #include <vector>

    constexpr long long size= 100000000;

    constexpr long long firBound=  25000000;
    constexpr long long secBound=  50000000;
    constexpr long long thiBound=  75000000;
    constexpr long long fouBound= 100000000;

    void sumUp(std::atomic<unsigned long long>& sum, const std::vector<int>& val, unsigned long long beg, unsigned long long end){
        unsigned int long long tmpSum{};
        for (auto i= beg; i < end; ++i){
    	    tmpSum += val[i];
        }
        sum+= tmpSum;
    }

    int main(){

      std::cout << std::endl;

      std::vector<int> randValues;
      randValues.reserve(size);

      std::mt19937 engine;
      std::uniform_int_distribution<> uniformDist(1,10);
      for ( long long i=0 ; i< size ; ++i) randValues.push_back(uniformDist(engine));

      std::atomic<unsigned long long> sum{};
      auto start = std::chrono::system_clock::now();

      std::thread t1(sumUp,std::ref(sum),std::ref(randValues),0,firBound);
      std::thread t2(sumUp,std::ref(sum),std::ref(randValues),firBound,secBound);
      std::thread t3(sumUp,std::ref(sum),std::ref(randValues),secBound,thiBound);
      std::thread t4(sumUp,std::ref(sum),std::ref(randValues),thiBound,fouBound);

      t1.join();
      t2.join();
      t3.join();
      t4.join();

      std::chrono::duration<double> dur= std::chrono::system_clock::now() - start;
      std::cout << "Time for addition " << dur.count() << " seconds" << std::endl;
      std::cout << "Result: " << sum << std::endl;

      std::cout << std::endl;

    }

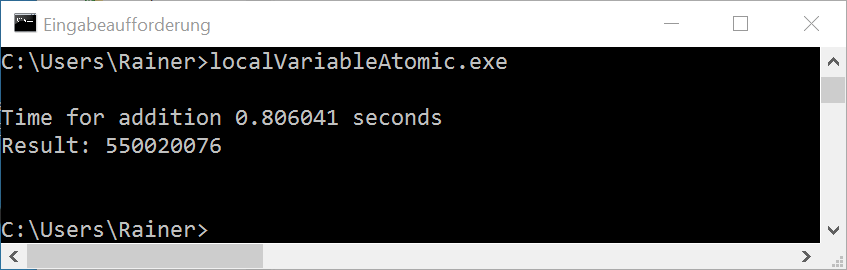

    Without optimization

    localVariableAtomiclocalVariableAtomicwin

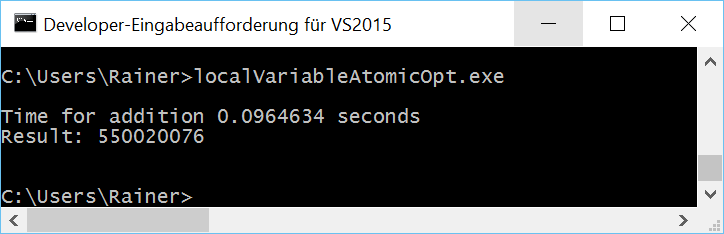

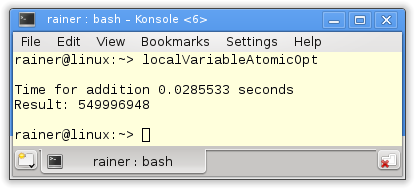

    Maximum optimization

     localVariableAtomicOptlocalVariableAtomicOptwin

    Atomic operations with relaxed semantic

    We can do better. Instead of the default memory model of sequential consistency, I use relaxed semantics. That’s well-defined because it doesn’t matter in which order the additions in line 23 take place.



     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    // localVariableAtomicRelaxed.cpp

    #include <atomic>
    #include <chrono>
    #include <iostream>
    #include <random>
    #include <thread>
    #include <utility>
    #include <vector>

    constexpr long long size= 100000000;

    constexpr long long firBound=  25000000;
    constexpr long long secBound=  50000000;
    constexpr long long thiBound=  75000000;
    constexpr long long fouBound= 100000000;

    void sumUp(std::atomic<unsigned long long>& sum, const std::vector<int>& val, unsigned long long beg, unsigned long long end){
        unsigned int long long tmpSum{};
        for (auto i= beg; i < end; ++i){
    	    tmpSum += val[i];
        }
        sum.fetch_add(tmpSum,std::memory_order_relaxed);
    }

    int main(){

      std::cout << std::endl;

      std::vector<int> randValues;
      randValues.reserve(size);

      std::mt19937 engine;
      std::uniform_int_distribution<> uniformDist(1,10);
      for ( long long i=0 ; i< size ; ++i) randValues.push_back(uniformDist(engine));

      std::atomic<unsigned long long> sum{};
      auto start = std::chrono::system_clock::now();

      std::thread t1(sumUp,std::ref(sum),std::ref(randValues),0,firBound);
      std::thread t2(sumUp,std::ref(sum),std::ref(randValues),firBound,secBound);
      std::thread t3(sumUp,std::ref(sum),std::ref(randValues),secBound,thiBound);
      std::thread t4(sumUp,std::ref(sum),std::ref(randValues),thiBound,fouBound);


      t1.join();
      t2.join();
      t3.join();
      t4.join();
      std::chrono::duration<double> dur= std::chrono::system_clock::now() - start;
      std::cout << "Time for addition " << dur.count() << " seconds" << std::endl;
      std::cout << "Result: " << sum << std::endl;

      std::cout << std::endl;

    }

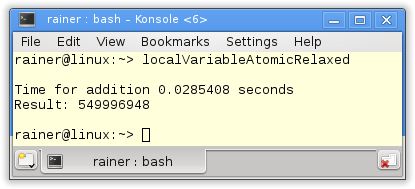

    Without optimization

    localVariableAtomicRelaxedlocalVariableAtomicRelaxedwin

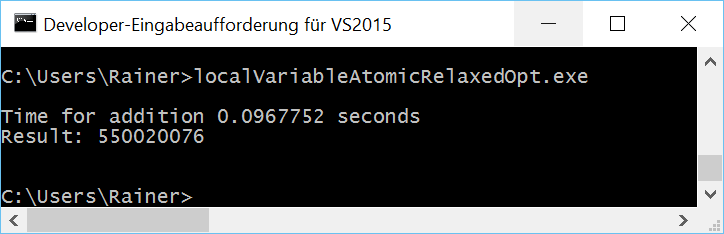

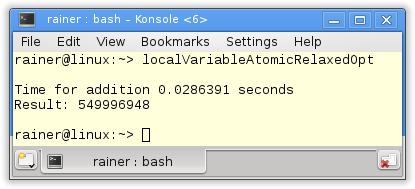

    Maximum optimization

    localVariableAtomicRelaxedOptlocalVariableAtomicRelaxedOptwin

    The following strategy is similar. But now I use thread local data.

    Thread local data

    Thread local data is data that each thread exclusively owns. They will be created when needed. Therefore, thread local data perfectly fit the local summation variable tmpSum.



     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    // threadLocal.cpp

    #include <atomic>
    #include <chrono>
    #include <iostream>
    #include <random>
    #include <thread>
    #include <utility>
    #include <vector>

    constexpr long long size= 100000000;

    constexpr long long firBound=  25000000;
    constexpr long long secBound=  50000000;
    constexpr long long thiBound=  75000000;
    constexpr long long fouBound= 100000000;

    thread_local unsigned long long tmpSum= 0;

    void sumUp(std::atomic<unsigned long long>& sum, const std::vector<int>& val, unsigned long long beg, unsigned long long end){
        for (auto i= beg; i < end; ++i){
            tmpSum += val[i];
        }
        sum.fetch_add(tmpSum,std::memory_order_relaxed);
    }

    int main(){

      std::cout << std::endl;

      std::vector<int> randValues;
      randValues.reserve(size);

      std::mt19937 engine;
      std::uniform_int_distribution<> uniformDist(1,10);
      for ( long long i=0 ; i< size ; ++i) randValues.push_back(uniformDist(engine));

      std::atomic<unsigned long long> sum{};
      auto start = std::chrono::system_clock::now();

      std::thread t1(sumUp,std::ref(sum),std::ref(randValues),0,firBound);
      std::thread t2(sumUp,std::ref(sum),std::ref(randValues),firBound,secBound);
      std::thread t3(sumUp,std::ref(sum),std::ref(randValues),secBound,thiBound);
      std::thread t4(sumUp,std::ref(sum),std::ref(randValues),thiBound,fouBound);

      t1.join();
      t2.join();
      t3.join();
      t4.join();

      std::chrono::duration<double> dur= std::chrono::system_clock::now() - start;
      std::cout << "Time for addition " << dur.count() << " seconds" << std::endl;
      std::cout << "Result: " << sum << std::endl;

      std::cout << std::endl;

    }




    I declare in line 18 the thread-local variable tmpSum and use it for the addition in lines 22 and 24. The small difference between the thread-local variable and the local variable in the previous programs is that the thread-local variable’s lifetime is bound to its thread’s lifetime. The lifetime of the local variable depends on its scope.

    Without optimization

    threadLocalthreadLocalwin

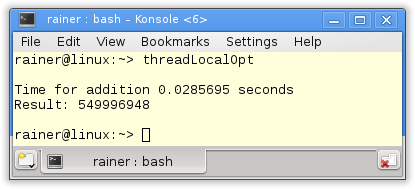

    Maximum optimization

    threadLocalOptthreadLocalOptwin

    The question is. Is it possible to calculate the sum in a fast way without synchronization? Yes.

    Tasks

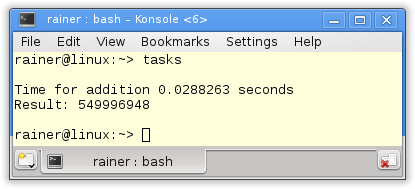

    With task, we can do the whole job without synchronization. Each summation is performed in a separate thread and the final summation is in a single thread. Here are the details of tasks. I will use promise and future in the following program.



     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    // tasks.cpp

    #include <chrono>
    #include <future>
    #include <iostream>
    #include <random>
    #include <thread>
    #include <utility>
    #include <vector>

    constexpr long long size= 100000000;

    constexpr long long firBound=  25000000;
    constexpr long long secBound=  50000000;
    constexpr long long thiBound=  75000000;
    constexpr long long fouBound= 100000000;

    void sumUp(std::promise<unsigned long long>&& prom, const std::vector<int>& val, unsigned long long beg, unsigned long long end){
    	unsigned long long sum={};
    	for (auto i= beg; i < end; ++i){
    	    sum += val[i];
        }
        prom.set_value(sum);
    }

    int main(){

      std::cout << std::endl;

      std::vector<int> randValues;
      randValues.reserve(size);

      std::mt19937 engine;
      std::uniform_int_distribution<> uniformDist(1,10);
      for ( long long i=0 ; i< size ; ++i) randValues.push_back(uniformDist(engine));

      std::promise<unsigned long long> prom1;
      std::promise<unsigned long long> prom2;
      std::promise<unsigned long long> prom3;
      std::promise<unsigned long long> prom4;

      auto fut1= prom1.get_future();
      auto fut2= prom2.get_future();
      auto fut3= prom3.get_future();
      auto fut4= prom4.get_future();


      auto start = std::chrono::system_clock::now();

      std::thread t1(sumUp,std::move(prom1),std::ref(randValues),0,firBound);
      std::thread t2(sumUp,std::move(prom2),std::ref(randValues),firBound,secBound);
      std::thread t3(sumUp,std::move(prom3),std::ref(randValues),secBound,thiBound);
      std::thread t4(sumUp,std::move(prom4),std::ref(randValues),thiBound,fouBound);

      auto sum= fut1.get() + fut2.get() + fut3.get() + fut4.get();

      std::chrono::duration<double> dur= std::chrono::system_clock::now() - start;
      std::cout << "Time for addition " << dur.count() << " seconds" << std::endl;
      std::cout << "Result: " << sum << std::endl;

      t1.join();
      t2.join();
      t3.join();
      t4.join();

      std::cout << std::endl;

    }




    I define in lines 37 – 45 the four promises and create from them the associated futures. Each promise is moved in lines 50 – 52 in a separate thread. A promise can only be moved; therefore, I use std::move. The work package of the thread is the function sumUp (lines 18 – 24). sumUp takes as the first argument a promise by rvalue reference. The futures ask in line 55 for the results. The get call is blocking.

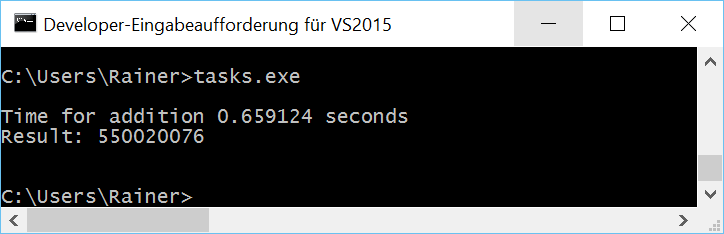

    Without optimization

    taskstaskswin

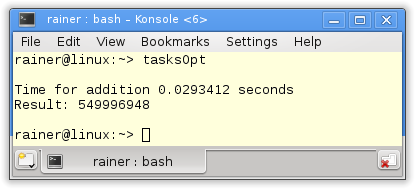

    Maximum optimization

    tasksOpttasksOptwin

    All numbers in the overview

    The overview

    As previously mentioned, the numbers are quite similar for Linux. That’s no surprise because I always use the same strategy: Calculate the partial sum locally without synchronization and add the local sums. The addition of the partial sums has to be synchronized. What astonished me was that maximum optimization makes no significant difference.

    On Windows, the story is different. First, it makes a big difference if I compile the program with maximum or without optimization; second, Windows is much slower than Linux. I’m unsure if that is since Windows has only two cores but Linux 4.

     MultipleThreadsEng

    What’s next?

    I will reason in the next post about the numbers for summing up a vector and the results that can be derived from it.











    Thanks a lot to my Patreon Supporters: Matt Braun, Roman Postanciuc, Tobias Zindl, G Prvulovic, Reinhold Dröge, Abernitzke, Frank Grimm, Sakib, Broeserl, António Pina, Sergey Agafyin, Андрей Бурмистров, Jake, GS, Lawton Shoemake, Jozo Leko, John Breland, Venkat Nandam, Jose Francisco, Douglas Tinkham, Kuchlong Kuchlong, Robert Blanch, Truels Wissneth, Kris Kafka, Mario Luoni, Friedrich Huber, lennonli, Pramod Tikare Muralidhara, Peter Ware, Daniel Hufschläger, Alessandro Pezzato, Bob Perry, Satish Vangipuram, Andi Ireland, Richard Ohnemus, Michael Dunsky, Leo Goodstadt, John Wiederhirn, Yacob Cohen-Arazi, Florian Tischler, Robin Furness, Michael Young, Holger Detering, Bernd Mühlhaus, Stephen Kelley, Kyle Dean, Tusar Palauri, Dmitry Farberov, Juan Dent, George Liao, Daniel Ceperley, Jon T Hess, Stephen Totten, Wolfgang Fütterer, Matthias Grün, Phillip Diekmann, Ben Atakora, Ann Shatoff, Rob North, Bhavith C Achar, Marco Parri Empoli, moon, Philipp Lenk, Hobsbawm, and Charles-Jianye Chen.

    Thanks, in particular, to Jon Hess, Lakshman, Christian Wittenhorst, Sherhy Pyton, Dendi Suhubdy, Sudhakar Belagurusamy, Richard Sargeant, Rusty Fleming, John Nebel, Mipko, Alicja Kaminska, Slavko Radman, and David Poole.

    My special thanks to Embarcadero
    My special thanks to PVS-Studio
    My special thanks to Tipi.build
    My special thanks to Take Up Code
    My special thanks to SHAVEDYAKS

    Seminars

    I’m happy to give online seminars or face-to-face seminars worldwide. Please call me if you have any questions.

    Standard Seminars (English/German)

    Here is a compilation of my standard seminars. These seminars are only meant to give you a first orientation.

    • C++ – The Core Language
    • C++ – The Standard Library
    • C++ – Compact
    • C++11 and C++14
    • Concurrency with Modern C++
    • Design Pattern and Architectural Pattern with C++
    • Embedded Programming with Modern C++
    • Generic Programming (Templates) with C++
    • Clean Code with Modern C++
    • C++20

    Online Seminars (German)

    Contact Me

    Modernes C++ Mentoring,





    0 replies

    Leave a Reply

    Want to join the discussion?
    Feel free to contribute!

    Leave a Reply

    Your email address will not be published. Required fields are marked *
