TimelineCpp20

An Improved Thread with C++20

std::jthread stands for joining thread. In addition to std::thread (C++11), std::jthread automatically joins in its destructor and can cooperatively be interrupted. Read this post to know why std::jthread should be your first choice.

 TimelineCpp20

The following table gives you a concise overview of the functionality of std::jthread.

jthread



For additional details, please refer to cppreference.com. When you want to read more posts about std::thread, here are they: my post about std::thread.



Rainer D 6 P2 500x500Modernes C++ Mentoring

Be part of my mentoring programs:

  • "Fundamentals for C++ Professionals" (open)
  • "Design Patterns and Architectural Patterns with C++" (open)
  • "C++20: Get the Details" (open)
  • "Concurrency with Modern C++" (starts March 2024)
  • Do you want to stay informed: Subscribe.



    First, why do we need an improved thread in C++20? Here is the first reason.

    Automatically Joining

    This is the non-intuitive behavior of std::thread. If a std::thread is still joinable, std::terminate is called in its destructor. A thread thr is joinable if neither thr.join() nor thr.detach() was called. Let me show what that means.

    // threadJoinable.cpp

    #include <iostream>
    #include <thread>

    int main() {

        std::cout << '\n';
        std::cout << std::boolalpha;

        std::thread thr{[]{ std::cout << "Joinable std::thread" << '\n'; }};

        std::cout << "thr.joinable(): " << thr.joinable() << '\n';

        std::cout << '\n';

    }




    When executed, the program terminates when the local object thr goes out of scope.

    threadJoinable

    Both executions of std::thread terminate. In the second run, the thread thr has enough time to display its message: Joinable std::thread.

    In the next example, I use std::jthread from the C++20 standard.

    // jthreadJoinable.cpp

    #include <iostream>
    #include <thread>

    int main() {

        std::cout << '\n';
        std::cout << std::boolalpha;

        std::jthread thr{[]{ std::cout << "Joinable std::thread" << '\n'; }};

        std::cout << "thr.joinable(): " << thr.joinable() << '\n';

        std::cout << '\n';

    }




    Now, the thread thr automatically joins in its destructor if it’s still joinable such as in this case.

    jthreadJoinable

    But this is not all that std::jthread  provides additionally to std::thread. A std::jthread can be cooperatively interrupted. I already presented the general ideas of cooperative interruption in my last post: Cooperative Interruption of a Thread in C++20.

    Cooperative Interruption of a std::jthread

    To get a general idea, let me present a simple example.

    // interruptJthread.cpp

    #include <chrono>
    #include <iostream>
    #include <thread>

    using namespace::std::literals;

    int main() {

        std::cout << '\n';

        std::jthread nonInterruptable([]{                           // (1)
            int counter{0};
            while (counter < 10){
                std::this_thread::sleep_for(0.2s);
                std::cerr << "nonInterruptable: " << counter << '\n';
                ++counter;
            }
        });

        std::jthread interruptable([](std::stop_token stoken){     // (2)
            int counter{0};
            while (counter < 10){
                std::this_thread::sleep_for(0.2s);
                if (stoken.stop_requested()) return;               // (3)
                std::cerr << "interruptable: " << counter << '\n';
                ++counter;
            }
        });

        std::this_thread::sleep_for(1s);

        std::cerr << '\n';
        std::cerr << "Main thread interrupts both jthreads" << '\n';
        nonInterruptable.request_stop();
        interruptable.request_stop();                              // (4)

        std::cout << '\n';

    }




    In the main program, I start the two threads nonInterruptable and interruptable (lines 1)and 2). Unlike in the thread nonInterruptable , the thread interruptable gets a std::stop_token and uses it in line (3) to check if it was interrupted: stoken.stop_requested(). In case of a stop request, the lambda function returns, and the thread ends. The call interruptable.request_stop() (line 4) triggers the stop request. This does not hold for the previous call nonInterruptable.request_stop() . The call has no effect.

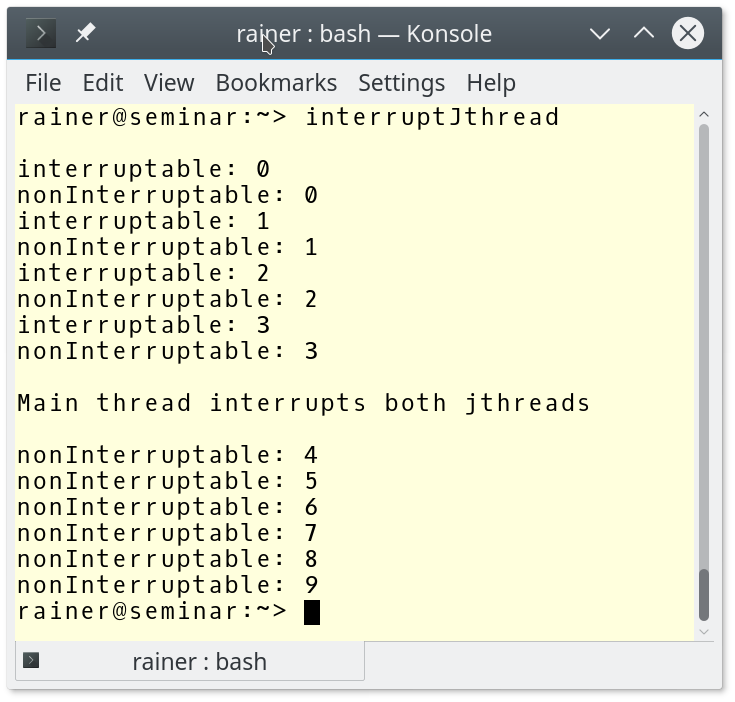

    interruptJthread

    To complete my post, with C++20, you can also cooperatively interrupt a condition variable.

    New wait Overloads for std::condition_variable_any

    Before I write about std::condition_variable_any, here are my post about condition variables

    The three wait variations wait, wait_for, and wait_until of the std::condition_variable_any get new overloads. These overloads take a std::stop_token.

    template <class Predicate>
    bool wait(Lock& lock,
              stop_token stoken,
              Predicate pred);

    template <class Rep, class Period, class Predicate>
    bool wait_for(Lock& lock,
                  stop_token stoken,
                  const chrono::duration<Rep, Period>& rel_time,
                  Predicate pred);

    template <class Clock, class Duration, class Predicate>
    bool wait_until(Lock& lock,
                    stop_token stoken,
                    const chrono::time_point<Clock, Duration>& abs_time,
                    Predicate pred);




    These new overloads need a predicate. The presented versions ensure getting notified if a stop request for the passed std::stop_token stoken is signaled. They return a boolean that indicates whether the predicate evaluates to true. This returned boolean is independent of whether a stop was requested or whether the timeout was triggered.

    After the wait calls, you can check if a stop request occurred.

    cv.wait(lock, stoken, predicate);
    if (stoken.stop_requested()){
        // interrupt occurred
    }




    The following example shows the usage of a condition variable with a stop request.

    // conditionVariableAny.cpp

    #include <condition_variable>
    #include <thread>
    #include <iostream>
    #include <chrono>
    #include <mutex>
    #include <thread>

    using namespace std::literals;

    std::mutex mutex_;
    std::condition_variable_any condVar;

    bool dataReady;

    void receiver(std::stop_token stopToken) {                 // (1)

        std::cout << "Waiting" << '\n';

        std::unique_lock<std::mutex> lck(mutex_);
        bool ret = condVar.wait(lck, stopToken, []{return dataReady;});
        if (ret){
            std::cout << "Notification received: " << '\n';
        }
        else{
             std::cout << "Stop request received" << '\n';
        }
    }

    void sender() {                                            // (2)

        std::this_thread::sleep_for(5ms);
        {
            std::lock_guard<std::mutex> lck(mutex_);
            dataReady = true;
            std::cout << "Send notification"  << '\n';
        }
        condVar.notify_one();                                  // (3)

    }

    int main(){

      std::cout << '\n';

      std::jthread t1(receiver);
      std::jthread t2(sender);

      t1.request_stop();                                       // (4)

      t1.join();
      t2.join();

      std::cout << '\n';

    }




    The receiver thread (line 1) is waiting for the notification of the sender thread (line 2). Before the sender thread sends its notification (line 3), the main thread triggers a stop request in line (4). The program’s output shows that the stop request happened before the notification.

    conditionVariableAny

    What’s next?

    What happens when your write without synchronization to std::cout? You get a mess. Thanks to C++20, we have synchronized output streams.
