Multithreading with C++17 and C++20

Forecasts about the future are difficult. In particular, when they are about C++20. Nevertheless, I will look into the crystal ball and write in the following posts about what we will get with C++17  and what we can hope for with C++20.



timelineCpp17andCpp20

Since C++11, C++ faces the requirements of multicore architectures. The 2011 published standard defines how a program should behave in the presence of many threads. The multithreading capabilities of C++11 consist of two parts. On the one hand, there is the well-defined memory model; on the other hand, there is the standardized threading API.

The well-defined memory model deals with the following questions.

  1. What are atomic operations?
  2. Which sequence of operations is guaranteed?
  3. When are the memory effects of operations visible?

The standardized threading interface in C++11 consists of the following components.



Rainer D 6 P2 500x500Modernes C++ Mentoring

Be part of my mentoring programs:

  • "Fundamentals for C++ Professionals" (open)
  • "Design Patterns and Architectural Patterns with C++" (open)
  • "C++20: Get the Details" (open)
  • "Concurrency with Modern C++" (starts March 2024)
  • Do you want to stay informed: Subscribe.



    1. Threads
    2. Tasks
    3. Thread-local data
    4. Condition variables

    If that is not too boring, read the posts about the memory model and the standardized threading API.

    Wearing my multithreading glasses, C++14 has not have much to offer. C++14 added Reader-Writer Locks.

    The question, which arises, is: What has the C++ future to offer?

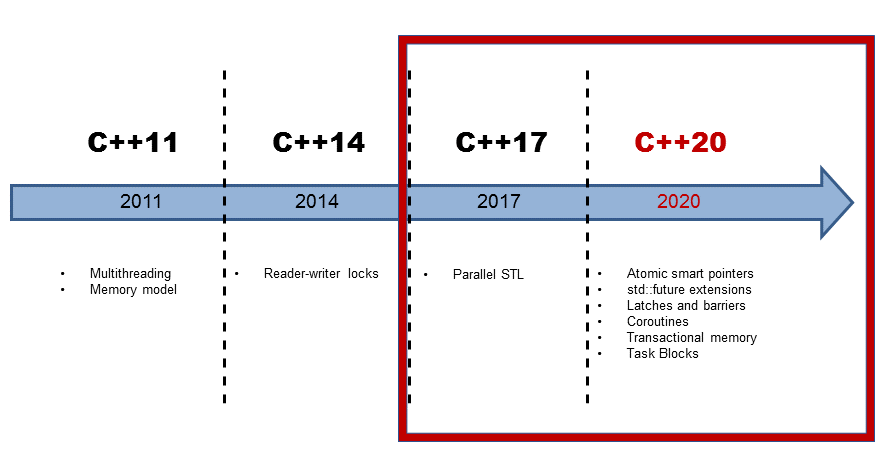

    timelineCpp17andCpp20 1

    C++17

    With C++17, most of the algorithms of the Standard Template Library will be available in a parallel version. Therefore, you can invoke an algorithm with a so-called execution policy. This execution policy specifies if the algorithm runs sequential (std::seq), parallel (std::par), or parallel and vectorized (std::par_unseq).


    std::vector<int> vec ={3, 2, 1, 4, 5, 6, 10, 8, 9, 4};

    std::sort(vec.begin(), vec.end());                            // sequential as ever
    std::sort(std::execution::seq, vec.begin(), vec.end());       // sequential
    std::sort(std::execution::par, vec.begin(), vec.end());       // parallel
    std::sort(std::execution::par_unseq, vec.begin(), vec.end()); // parallel and vectorized




    Therefore, the first and second variations of the sort algorithm run sequential, the third parallel, and the fourth parallel and vectorized.

    C++20 offers totally new multithreading concepts. The key idea is that multithreading becomes a lot simpler and less error-prone.

    C++20

    Atomic smart pointer

    The atomic smart pointers std::shared_ptr and std::weak_ptr have a conceptual issue in multithreading programs. They share a mutable state. Therefore, they a prone to data races and, therefore, undefined behavior. std::shared_ptr and std::weak_ ptr guarantee that the in- or decrementing of the reference counter is an atomic operation and the resource will be deleted exactly once. Still, both do not guarantee that the access to its resource is atomic. The new atomic smart pointers solve this issue.

    std::atomic_shared_ptr
    std::atomic_weak_ptr




    With tasks called promises and futures, we got a new multithreading concept in C++11. Although tasks have a lot to offer, they have a big drawbacks. Futures can not be composed in C++11.

    std::future extensions

    That will not hold for futures in C++20. Therefore, a future becomes ready, when

    • its predecessor becomes ready:

     then:

    future<int> f1= async([]() {return 123;});
    future<string> f2 = f1.then([](future<int> f) {
      return f.get().to_string();
    });
    • one of its predecessors become ready:

    when_any:

    future<int> futures[] = {async([]() { return intResult(125); }),
                             async([]() { return intResult(456); })};
    future<vector<future<int>>> any_f = when_any(begin(futures),end(futures));
    • all of its predecessors become ready:

    when_all:

    future<int> futures[] = {async([]() { return intResult(125); }),
                             async([]() { return intResult(456); })};
    future<vector<future<int>>> all_f = when_all(begin(futures), end(futures));




    C++14 has no semaphores. Semaphores enable threads can control access to a shared resource. No problem; with C++20, we get latches and barriers.

    Latches and barriers

    You can use latches and barriers for waiting at a synchronization point until the counter becomes zero. The difference is std::latch can only be used once; std::barrier and std::flex_barrier more the once. Contrary to a std::barrier, a std::flex_barrier can adjust its counter after each iteration.



     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    void doWork(threadpool* pool){
      latch completion_latch(NUMBER_TASKS);
      for (int i = 0; i < NUMBER_TASKS; ++i){
        pool->add_task([&]{
          // perform the work
          ...
          completion_latch.count_down();
        });
      }
      // block until all tasks are done
      completion_latch.wait();
    }




    The thread running the function doWork waits in line 11 until the completion_latch becomes 0. The completion_latch is set to NUMBER_TASKS in line 2 and decremented in line 7.

    Coroutines are generalized functions. Contrary to functions, you can suspend and resume the execution of the coroutine while keeping its state.

    Coroutines

    Coroutines are often the means of choice to implement cooperative multitasking in operating systems, event loops, infinite lists, or pipelines.

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    generator<int> getInts(int first, int last){
      for (auto i= first; i <= last; ++i){
        co_yield i;
      }
    }

    int main(){
      for (auto i: getInts(5, 10)){
        std::cout << i << " ";                      // 5 6 7 8 9 10
    }




    The function getInts (lines 1 – 5) gives back a generator that returns on request a value. The expression co_yield serves two purposes. At first, it returns a new value, and a second, it waits until a new value is requested. The range-based for-loop successively requests values from 5 to 10.

    With transaction memory, the well-established idea of transactions will be applied in software.

    Transactional memory

    The transactional memory idea is based on transactions from the database theory. A transaction is an action that provides the properties Atomicity, Consistency, Isolation, and Durability (ACID). Except for durability, all properties will hold for transactional memory in C++. C++ will have transactional memory in two flavors. One is called synchronized blocks, and the other atomic blocks. Both have in common that they will be executed in total order and behave as a global lock protecting them. Contrary to synchronized blocks, atomic blocks can not execute transaction-unsafe code.

    Therefore, you can invoke std::cout in a synchronized block but not an atomic one.



     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    int func() {
      static int i = 0;
      synchronized{
        std::cout << "Not interleaved \n";
        ++i;
        return i;
      }
    }

    int main(){
      std::vector<std::thread> v(10);
      for(auto& t: v)
        t = std::thread([]{ for(int n = 0; n < 10; ++n) func(); });
    }




    The synchronized keyword in line 3 guarantees that the execution of the synchronized block (lines 3 – 7) will not overlap. That means, in particular, that there is a single, total order between all synchronized blocks. To say it the other way around. The end of each synchronized block synchronizes with the start of the next synchronized block.



    Although I called this post Multithreading in C++17 and C++20, we get with task blocks beside the parallel STL more parallel features in C++.

    Task blocks

    Task Blocks implement the fork-join paradigm. The graphic shows the key idea.

     ForkJoin

    By using run in a task block, you can fork new tasks that will be joined at the end of the task block.



     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    template <typename Func>
    int traverse(node& n, Func && f){
        int left = 0, right = 0;
        define_task_block(
            [&](task_block& tb){
                if (n.left) tb.run([&]{ left = traverse(*n.left, f); });
                if (n.right) tb.run([&]{ right = traverse(*n.right, f); });
             }
        );
        return f(n) + left + right;
    }



    traverse is a function template that invokes the function Func on each node of its tree. The expression define_task_block defines the task block. In this region, you have a task block tb at your disposal to start new tasks. Exactly that is happening in the left and right branches of the tree (lines 6 and 7). Line 9 is the end of the task block and, therefore, the synchronization point.

    What’s next?

    After I have given the overview of the new multithreading features in C++17 and C++20, I will provide the details in the next posts. I will start with the parallel STL. I’m quite sure that my post has left more questions open than answered.
