Layers

Layers

The layers pattern splits a task into horizontal layers. Each layer has a specific responsibility and provides a service to a higher layer.

Layers

The Layers Pattern is an architectural pattern that helps, according to the book “Pattern-Oriented Software Architecture, Volume 1″, to bring structure into the mud.

Also Known as

  • N-tier architecture pattern

Context

  • Large systems requiring disassembly

Problem

  • A system that performs operations at different levels
  • Higher levels use lower levels

Solution

  • Structure the system in layers
  • Services of a higher layer are based on the services of the lower layers

Structure

layersStructure

 LayerCRC





Rainer D 6 P2 500x500Modernes C++ Mentoring

Be part of my mentoring programs:

  • "Fundamentals for C++ Professionals" (open)
  • "Design Patterns and Architectural Patterns with C++" (open)
  • "C++20: Get the Details" (open)
  • "Concurrency with Modern C++" (starts March 2024)
  • Do you want to stay informed: Subscribe.



    Client

    • Accesses the top level

    Layer J

    • Encapsulates the specific role and responsibility of layer J
    • Offers its services with the help of layer J -1
    • Can only access layer J – 1

    Although not specified, most layered architectures consist of three or four layers. Each layer is independent of the other layer. In the pure version, a layer can only access its layer below. A layer can not access its upper layer because it would create additional dependencies and complicates the control structure. Additionally, another application cannot easily use a layer that depends on an upper layer. A layer often provides its functionality by implementing the Facade Pattern. The Facade Pattern provides a simplified interface to a complex system.

    Examples

    The Layers Pattern is heavily used since the beginning of software development. Consequentially, there are many use cases:

    OSI Model and TCP/IP Model

    The Open Systems Interconnection model (OSI model) is a conceptual model that ‘provides a common basis for the coordination of [ISO] standards development for the purpose of systems interconnection’.[2] In the OSI reference model, the communications between a computing system are split into seven different abstraction layers: Physical, Data Link, Network, Transport, Session, Presentation, and Application. (https://en.wikipedia.org/wiki/OSI_model)

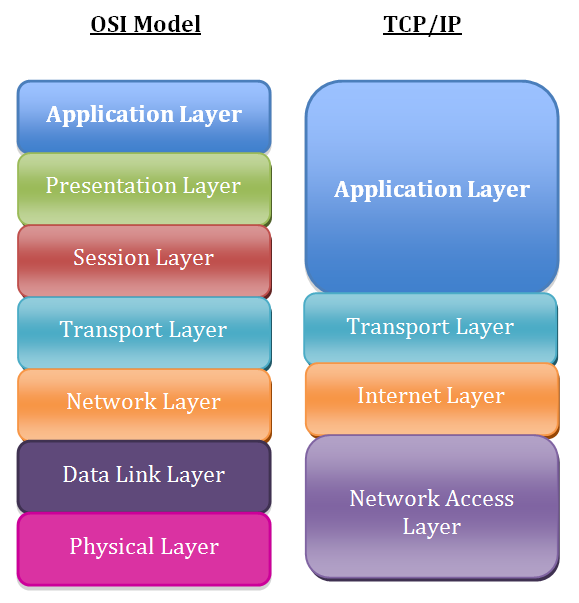

    Osi model 7 layers

    Chunte7, CC BY-SA 3.0 <https://creativecommons.org/licenses/by-sa/3.0>, via Wikimedia Commons



    You may also very often hear about the simplified TCP/IP model: The Internet protocol suite, commonly known as TCP/IP, is a framework for organizing the set of communication protocols used in the Internet and similar computer networks according to functional criteria. The foundational protocols in the suite are the Transmission Control Protocol (TCP), the User Datagram Protocol (UDP), and the Internet Protocol (IP). (https://en.wikipedia.org/wiki/Internet_protocol_suite)

    Embedded Systems

    When developing software for embedded systems, you typically use various layers of abstraction in C++.

    • You typically start with the board support package (BSP). The BSP contains board-specific configurations, such as boot firmware and device drivers, so the embedded operating system can work.
    • The hardware abstraction layer (HAL) sits on top of the BSP. The HAL is an abstraction layer between the hardware and the software that runs on the embedded system. Its function is to hide differences in hardware from the operating system.

    Extend/Embed Python in C/C++

    Extending Python in C/C++ consists of the following steps:

    1. Convert the values from Python to C/C++.
    2. Use the converted values to execute the C/C++ functionality.
    3. Convert the results from C/C++ to Python.

    Embedding does the same reversely. What is happening on the Python and the C layer? Here is the simplified strategy.

    • All Python types, such as int, inherit from object.

    object

    • The C pendant to the data type object is the C struct PyObject. C is not object-oriented. PyObject is a kind of the starting point of the Python object’s memory. You can study its implementation on GitHub: object.c. PyObject essentially has a reference counter and a pointer to the corresponding type.

    When you call a method on a Python type, this call goes to the C struct PyObject, defined in object.c. Inside object.c, the C function Py_TYPE deduces the object type and calls the corresponding function on the C layer. This means if the corresponding method is implemented on the deduced type this one is called. If not, the default implementation on PyObject is called if possible.

    Pros and Cons

    Pros

    Replacement of Layers

    Each layer has a specific role and specific responsibilities. It offers its services for the higher layer through an interface. The higher layer depends only on the interface of its lower layer. Consequentially, the lower layer can be easily replaced.

    Testability

    Each layer encapsulated its services. This makes it straightforward to test the functionality of each subsystem. More fine-granular tests, such as unit tests, must be applied inside the layers.

    Development

    Each layer can be implemented in isolation thanks to the separation of concern of the various layers. First, the interface of the layers has to be defined.

    Cons

    Granularity of Layers

    It may be challenging to find the appropriate granularity of layers. Too many layers may cause layers that have only minimal responsibility. Additionally, the architecture may be very difficult to understand. Too few layers make it complicated to replace, test, and develop them in isolation.

    Performance

    A client call triggers a sequence of calls ending in the lowest layer. This sequence of calls may impact the performance of the application. This holds, in particular, true if layers are remote.

    What’s Next?

    The Pipes-and-Filters Pattern is handy when you have a system that processes data in several steps, and each step should be developed independently. Let me write about it in my next post.
