Data-Parallel Types: simd_mask

Thanks to simd_mask, conditional execution of operations on data-parallel types is possible.

Unfortunately, in my last article, Data-Parallel Types – A First Example, I forgot to introduce one of the new library functions. I will make up for that in this article.

Where Expression

The new keyword where creates a so-called where expression. This allows the elements of a SIMD vector to be addressed conditionally.
The following example illustrates this behavior:

// where.cpp

#include <experimental/simd>
#include <iostream>
#include <string_view>
namespace stdx = std::experimental;

void println(std::string_view name, auto const& a)
{
    std::cout << name << ": ";
    for (std::size_t i{}; i != std::size(a); ++i)
        std::cout << a[i] << ' ';
    std::cout << '\n';
}

template<class A>
stdx::simd<int, A> my_abs(stdx::simd<int, A> x)
{
    where(x < 0, x) = -x; // Set elements where x is negative to their absolute value
    return x;
}

int main()
{
    const stdx::native_simd<int> a = 1;
    println("a", a);

    const stdx::native_simd<int> b([](int i) { return i - 2; });
    println("b", b);

    const auto c = a + b;
    println("c", c);

    const auto d = my_abs(c);
    println("d", d);

}

The where function is used in the my_abs function: where(x < 0, x) = -x; . This expression causes all elements of the SIMD vector that are less than zero to be set to their absolute value. The following screenshot shows the output of the program:

In this case, SSE2 commands are used. The SIMD vector is 128 bits in size.

The where expression can be parameterized with a bool expression or a simd_mask.

`simd_mask`

This allows the previous program where.cpp to also be implemented by using a simd_mask. The following program shows the application of the simd_mask.

// whereMask.cpp

#include <experimental/simd>
#include <iostream>
#include <string_view>
namespace stdx = std::experimental;

void println(std::string_view name, auto const& a)
{
    std::cout << std::boolalpha << name << ": ";
    for (std::size_t i{}; i != std::size(a); ++i)
        std::cout << a[i] << ' ';
    std::cout << '\n';
}


int main()
{
    const stdx::native_simd<int> a = 1;
    println("a", a);

    const stdx::native_simd<int> b([](int i) { return i - 2; });
    println("b", b);

    const auto c = a + b;
    println("c", c);

    const stdx::native_simd_mask x = c < 0;
    println("x", x);

    auto d  = c;
    where(x, d) *= -1;
    println("d", d);

}

I would like to begin my explanation with the last five lines of the main function. First, I create the simd_mask x by applying the predicate c < 0 to each element of the SIMD vector c. The mask x has the same length as the SIMD vector, but only contains truth values. To ensure that these truth values are displayed as true or false and not as 1 or 0, I have added the stream manipulator std::boolalpha to the println function. In addition, I have to initialize the SIMD vector d with c, since c is constant. Now the where expression where(x, d) *= -1 can be applied to d. Each element of the SIMD vector d is negated if the mask has the value true.

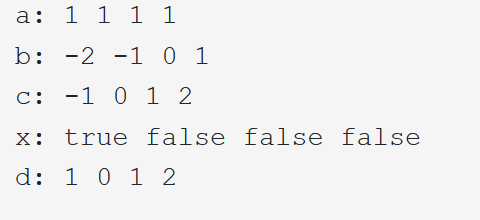

The following screenshot shows the output of the program:

The data type simd_mask is very similar to the data type simd. The main difference is that simd can accept all standard integer types, character types, and the types float and double. In contrast, simd_mask only supports Boolean values.

Here is the definition of simd_mask:

template<size_t Bytes, class Abi>
class basic_simd_mask

The Abi tag determines the number of elements and their memory. For the sake of completeness, here are the ABI tags again:

scalar: storing a single element
fixed_size: storing a specified number of elements
compatible: ensures ABI compatibility
native: most efficient
max_fixed_size: maximum number of elements guaranteed to be supported by fixed_size

Similar to simd, simd_mask also has two aliases:

template< size_t Bytes, int N >
using fixed_size_simd_mask = simd_mask<Bytes, simd_abi::fixed_size<N>>

template< size_t Bytes >
using native_simd_mask =  simd_mask<Bytes, simd_abi::native<Bytes>>

What’s next?

In what will be my last article on data-parallel types for the time being, I would like to discuss the special functions for these types.
