Data-Parallel Types: Algorithms

The data-parallel types library has four special algorithms for SIMD vectors.

The four special algorithms are min, max, minmax, and clamp.

`min, max,` and `minmax`

The two algorithms min and max have in common that they each accept two SIMD vectors and return a SIMD vector. This contains the element-wise minimum or maximum of the input vectors. The minmax algorithm also takes two SIMD vectors and returns a pair of SIMD vectors. The first vector in the pair contains the element-wise minimum, the second the element-wise maximum of the input vectors.

The following example shows the three algorithms in action:

// minmax.cpp

#include <experimental/simd>
#include <iomanip>
#include <iostream>

namespace stdx = std::experimental;

void println(auto rem, auto const v) {
    std::cout << rem << ": ";
    for (std::size_t i = 0; i != v.size(); ++i)
        std::cout << std::setw(2) << v[i] << ' ';
    std::cout << '\n';
}

void printPairs(auto rem, auto const v1) {
    std::cout << rem << ": ";
    for (std::size_t i = 0; i != v1.first.size(); ++i)
        std::cout << '(' << v1.first[i] << ", " << v1.second[i] << ')' << ' ';
    std::cout << '\n';
}

int main() {

    stdx::fixed_size_simd<int, 8> a{[](int i) {
        static constexpr auto c = {10, 9, 8, 7, 6, 5, 4, 3};
        return c.begin()[i];
    }};
    println("a", a);

    stdx::fixed_size_simd<int, 8> b{[](int i) {
        static constexpr auto c = {3, 4, 5, 6, 7, 8, 9, 10,};
        return c.begin()[i];
    }};
    println("b", b);

    std::cout << '\n';

   auto minimum = stdx::min(a, b);
   println("minimum", minimum);

   auto maximum = stdx::max(a, b);
   println("maximum", maximum);

   /*
   auto minmax = stdx::minmax(a, b);
   printPairs("minmax", minmax);
   */

}

I use the SIMD vectors a and b as input vectors. These are initialized specially. To do this, I create an initialization list c in the lambda function that returns an iterator to it.

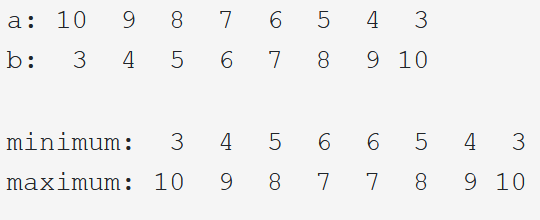

The following screenshot shows the output of the program:

You may be wondering why I commented out the use of the minmax algorithm. The reason is simple. I couldn’t compile the line stdx::minmax(a, b) with either the GCC or clang compilers.

`clamp`

std::datapar::clamp applies the std::clamp function to the SIMD vector element by element. Each element is clamped to a minimum and maximum limit.
The following program is based on an example from cppreference:

// clamp.cpp

#include <cstddef>
#include <cstdint>
#include <experimental/simd>
#include <iomanip>
#include <iostream>

namespace stdx = std::experimental;

void println(auto rem, auto const v) {
    std::cout << rem << ": ";
    for (std::size_t i = 0; i != v.size(); ++i)
        std::cout << std::setw(4) << v[i] << ' ';
    std::cout << '\n';
}

int main() {

    std::cout << "INT8_MIN: " << INT8_MIN << '\n';
    std::cout << "INT8_MAX: " << INT8_MAX << '\n';
    std::cout << "UINT8_MAX: " << UINT8_MAX << '\n';

    std::cout << '\n';

    stdx::fixed_size_simd<int, 8> a{[](int i) {
        static constexpr auto c = {-129, -128, -1, 0, 42, 127, 128, 255};
        return c.begin()[i];
    }};
    println("a", a);

    stdx::fixed_size_simd<int, 8> lo1{INT8_MIN};
    stdx::fixed_size_simd<int, 8> hi1{INT8_MAX};
    const auto b = stdx::clamp(a, lo1, hi1);
    println("b", b);

    stdx::fixed_size_simd<int, 8> lo2{0};
    stdx::fixed_size_simd<int, 8> hi2{UINT8_MAX};
    const auto c = stdx::clamp(a, lo2, hi2);
    println("c", c);

}

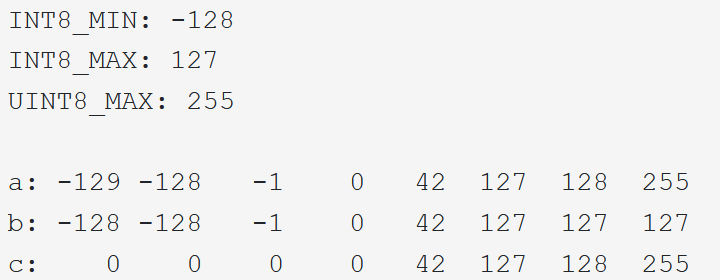

It is nice to see in the output of the SIMD vector b how the values of the SIMD vector a are mapped to the boundary values INT8_MIN and INT8_MAX. In SIMD vector c, on the other hand, the boundary values 0 and UINT8_MAX are used.

What’s Next?

Now it’s time for my second iteration through the new C++26 standard. I will focus primarily on the features that I did not cover in detail in my first iteration. I will start with contracts.
