CppDepend – A Review

In my concurrency class, I use more than 60 programs. Most of the programs consist of a single source file. I’m quite curious if the static code analysis tool CppDepend can find any issues in my sources. Let me try it out.

 cppDepend

My Special Use-Case

My use case is unique for two reasons. First, I don’t expect too many issues with my examples for one reason: I give quite often concurrency classes and use these examples in my classes; therefore, I had many code reviewer. Second, my programs are most of the times not really sophisticated and quite short. They should only serve one purpose: show the particular concurrency features in isolation.

My Strategy

Due to my unique circumstances, here are my steps to get the static code analysis with CppDepend.

  1. Generate a CMake file for Visual Studio, GCC, and Clang
  2. Generate a Visual Studio Project from CMake
  3. Import the Visual Studio Project project into CppDepend
  4. Make the code analysis in CppDepend

Here we go.

1. Generate a CMake file for Visual Studio, GCC, and Clang

My customers work with Visual Studio, GCC, or Clang. To provide a way to compile all C++ sources to executables automatically, I use CMake. In sum, I have more than 300 C++ sources files in various directories. Each source file should become an executable. Writing a CMakeList.txt manually for each directory would be a boring step. Additionally, I would have to adapt it each time, if I modified the file names. Terrible!. To automate the boring stuff, I wrote a small python script generateCMakeFile.py. generateCMakeFile.py generates a CMakeList.txt file for the directory, in which I invoke it.



Rainer D 6 P2 500x500Modernes C++ Mentoring

Be part of my mentoring programs:

  • "Fundamentals for C++ Professionals" (open)
  • "Design Patterns and Architectural Patterns with C++" (open)
  • "C++20: Get the Details" (open)
  • "Concurrency with Modern C++" (starts March 2024)
  • Do you want to stay informed: Subscribe.



    Here it is.

    # generateCMakeFile.py

    import fnmatch
    import os

    # A few constants
    SUFFIX = "*.cpp"
    OUTPUT = "CMakeLists.txt"

    # The output file
    outputFile = open(OUTPUT, "w")

    # Return the full path to all files respecting the pattern
    def getFiles(dir_, patterns="*", recursive=True):
        patterns = patterns.split()
        retValue = []
        for path, dirs, files in os.walk(dir_):
            for file_ in files:
                for pattern in patterns:
                    if fnmatch.fnmatch(file_, pattern):
                        retValue.append(os.path.join(path, file_))
                        break
            if not recursive: break
        return retValue


    # Get all files of the current working directory ending with *.cpp
    def getAllFilenames():
        allFiles = getFiles(os.getcwd(), SUFFIX , False)
        return [ os.path.basename(file_)[:-len(SUFFIX)+1] for file_ in allFiles ]

    # Create the CMakeLists.txt header for GCC, Clang, and MSVC
    def getHeader():
        return """# Require a recent version of cmake
    cmake_minimum_required(VERSION 2.8.4 FATAL_ERROR)

    # This project is C++ based.
    project(seminar)

    if(${CMAKE_CXX_COMPILER_ID} STREQUAL GNU)
        set(CMAKE_CXX_FLAGS "-O3 -std=c++14 -pthread")
        if (CMAKE_CXX_COMPILER_VERSION VERSION_LESS 5.0)
    	    message(WARNING "!!!! GCC versions must be at least 5.0 !!!!")
            message(WARNING "!!!! Adust the makefile to build with a different compiler. !!!!")
        endif()
    elseif (${CMAKE_CXX_COMPILER_ID} STREQUAL Clang)
        set(CMAKE_CXX_FLAGS "-O3 -std=c++14 -pthread")
        if (CMAKE_CXX_COMPILER_VERSION VERSION_LESS 3.5)
            message(WARNING "!!!! Clang version must be at least 3.5 !!!!")
    		message(WARNING "!!!! Adust the makefile to build with a different compiler. !!!!")
        endif()
    elseif (${CMAKE_CXX_COMPILER_ID} STREQUAL MSVC)
        set(CMAKE_CXX_FLAGS "/Ox /EHsc")
        if (CMAKE_CXX_COMPILER_VERSION VERSION_LESS 19.10)
            message(WARNING "!!!! MSVC version must be at least 19.10 !!!!")
        endif()
    else()
        message(WARNING "!!! You are using an unsupported compiler! Compilation has only been tested with GCC >= 5.0, Clang >= 3.5, or MSVC >= 19.10. !!!")
    endif()


    set(CMAKE_RUNTIME_OUTPUT_DIRECTORY "bin/")

    set(CMAKE_VERBOSE_MAKEFILE on)

    """

    # Create the list of all source files
    def getAllNames(allNames):
        outNames = "set(example_programs"
        for entry in allNames:
            outNames += "    " + entry + "\n"
        outNames += "   )"
        outNames += "\n"

        return outNames

    # Create an executable from the source file
    def getTail():
        tail = """foreach(example_program ${example_programs})
      set(sources ${example_program}.cpp)
      source_group("Source Files" FILES{sources})
      add_executable(${example_program} ${sources})
    endforeach()"""
        return tail


    # Create the CMakeLists.txt
    allNames = getAllFilenames()

    print >> outputFile, getHeader()

    print >> outputFile, getAllNames(allNames)

    print >> outputFile, getTail()




    To understand the program, you should start with the three print statements add the end. The brown font goes directly into CMakeList.txt.

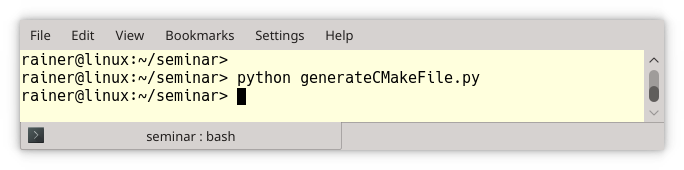

    Using the generateCMakeFile.py is straightforward. I copied the  generateCMakeFile.py to the directory, I wanted to use it. This step is not necessary but make the commandline easier to write.

    GenerateCmakeFile

    Finally, this is the autogenerate CMakeList.txt.

    # Require a recent version of cmake
    cmake_minimum_required(VERSION 2.8.4 FATAL_ERROR)

    # This project is C++ based.
    project(seminar)

    if(${CMAKE_CXX_COMPILER_ID} STREQUAL GNU)
        set(CMAKE_CXX_FLAGS "-O3 -std=c++14 -pthread")
        if (CMAKE_CXX_COMPILER_VERSION VERSION_LESS 5.0)
    	    message(WARNING "!!!! GCC versions must be at least 5.0 !!!!")
            message(WARNING "!!!! Adust the makefile to build with a different compiler. !!!!")
        endif()
    elseif (${CMAKE_CXX_COMPILER_ID} STREQUAL Clang)
        set(CMAKE_CXX_FLAGS "-O3 -std=c++14 -pthread")
        if (CMAKE_CXX_COMPILER_VERSION VERSION_LESS 3.5)
            message(WARNING "!!!! Clang version must be at least 3.5 !!!!")
    		message(WARNING "!!!! Adust the makefile to build with a different compiler. !!!!")
        endif()
    elseif (${CMAKE_CXX_COMPILER_ID} STREQUAL MSVC)
        set(CMAKE_CXX_FLAGS "/Ox /EHsc")
        if (CMAKE_CXX_COMPILER_VERSION VERSION_LESS 19.10)
            message(WARNING "!!!! MSVC version must be at least 19.10 !!!!")
        endif()
    else()
        message(WARNING "!!! You are using an unsupported compiler! Compilation has only been tested with GCC >= 5.0, Clang >= 3.5, or MSVC >= 19.10. !!!")
    endif()


    set(CMAKE_RUNTIME_OUTPUT_DIRECTORY "bin/")

    set(CMAKE_VERBOSE_MAKEFILE on)


    set(example_programs    acquireConsume
        acquireRelease
        asyncLazyEager
        atomicCondition
        atomic
        blockingAsync
        conditionVariable
        dataRaceOnX
        dotProduct
        fetch_mult
        lockGuard
        mutex
        newAlgorithm
        packagedTask
        packagedTaskReuse
        promiseFuture
        promiseFutureSynchronize
        readerWriterLock
        relaxed
        safeInitializationCallOnce
        safeInitializationStatic
        singleton
        spinlockAcquireRelease
        spinLock
        threadArguments
        threadCreate
        threadLifetime
        threadLocal
        threadMethods
        time
        timeDuration
        transitivity
        uniqueLock
       )

    foreach(example_program ${example_programs})
      set(sources ${example_program}.cpp)
      source_group("Source Files" FILES{sources})
      add_executable(${example_program} ${sources})
    endforeach()




    2. Generate a Visual Studio Project from CMake

    To make my CppDepend life more comfortable, I switch from Linux to Windows and continue with Visual Studio.

    MakeVisualProject

    This step creates a 64-bit Visual Studio Project in the directory “C:\Users\raine\build“.

    3. Import the Visual Studio Project project into CppDepend

    Now, it’s time to start CppDepend and create a new project Concurrency:

    NewProjectNext, I add Visual Studio to my new project.

    solution

    One step is still missing. I have to press the analyse button. It took my eight cores a few second to analyse the source files.

    4. Make the code analysis in CppDepend

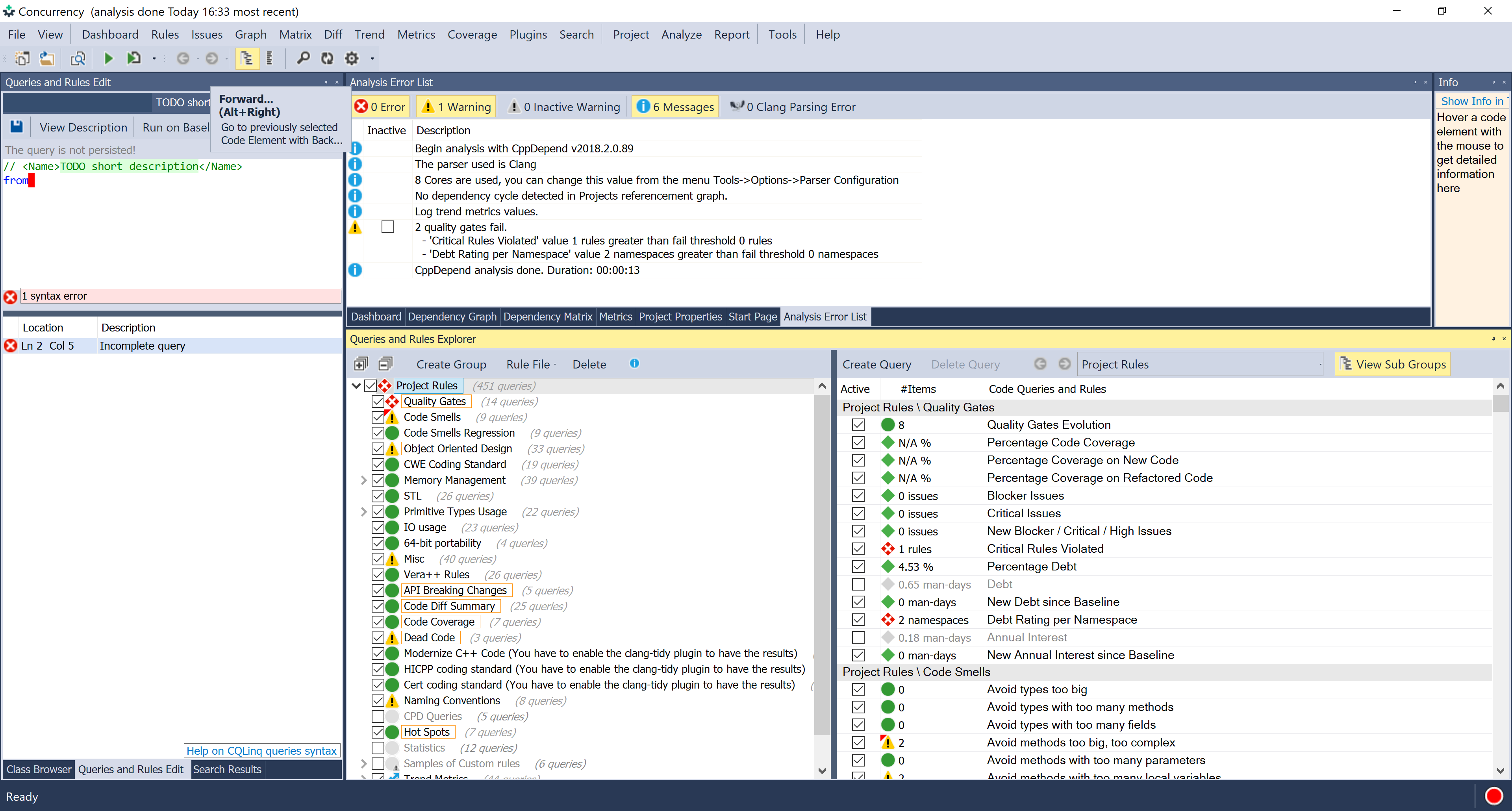

    As I already assumed it, the most checks are green:

    analysis

    Of course, I’m only interested in the red (Error) and yellow (Warning) ones.

    Error:

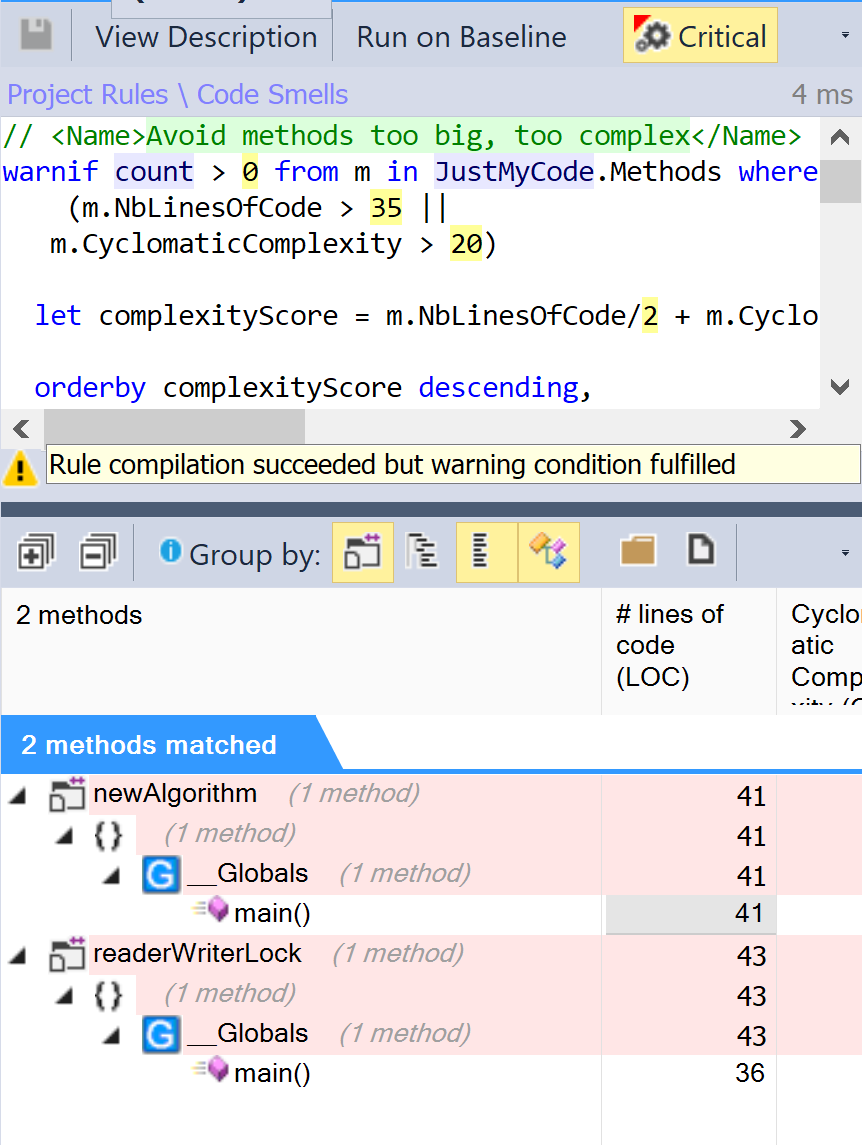

    • Quality Gates:
      • This issue boils down to mainly one function: The method is too big, has too many local variables, and is poorly documented. What I liked about CppDepend was that it shows me the metric I violated.


    QualityGates

    Warnings:

    • Code Smells:
      • The previous break of the Quality Gates was also a Code Smell; therefore, I can ignore this warning.
    • Object Oriented Design:
      • Only one of the thirty rules was violated: three of my constructors taking one argument were not explicit. Honestly, this is a rule I often preach in my seminars. Shame on me.


    ExplicitConstructor



    •  Misc:
      • This is also an issue I should fix. I passed a std::string by copy.


    passByReference

    • Dead Code:
      • This violation was funny. The violation was that the destructor of the singleton was never called. To my excuse, I only used a singleton to explain the thread-safe initialisation of a variable.
    • Naming Conventions:
      • I’m not a big fan of Hungarian notation. Therefore, I wouldn’t prefix an instance variable with a m_ or a static with a s_.

    My Resume

    Here is my short resume. I put not too much effort into the analysis of CppDepend but more in establishing an automated process to create the Visual Studio solution as input for CppDepend. Regardless, I found immediately a few big issues which I’m going to fix. It’s quite comfortable to fix these issues because a double-click on the Error/Warning in CppDepend opens the source file in Visual Studio.

    Although I only scratched at the surface of CppDepend, the analysis of my concurrency source files impressed me. I will, therefore, invest in the future more time to better understand the various metrics of CppDepend and apply them to my other source files. My gut feeling is that I can draw many benefits from CppDepend.
